Medidor de Potencia Digital | DPM-C530

★★★★☆ 4.9 (56 reseñas)

SKU: DPM-C530 Industrial Automation

$ 389.60

Descripción

Delta's DPM-C530 advanced multifunction meter offers precise measurement of various electrical energy values and power quality parameters, including power factor, harmonic vibration, and current/voltage imbalance, and also offers restricted access alarms and history logging functions.

Stock: Agotado

🚚 Envío gratis +$1000

🛡️ Garantía mínima de 12 meses

Contacta a un experto

Características

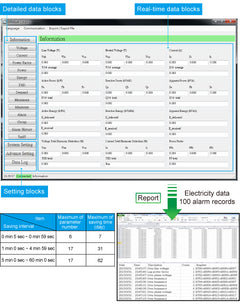

Supports alarm settings, automatic meter settings, and hourly electricity calculation
Multi-rate meter, log storage, and preset max/min value settings
Eco-mode meter and parameter group settings
Adopts MODBUS and BACnet MS/TP protocols, applicable to SCADA and energy management systems, as well as factory and building automation systems, and is suitable for sectors where power quality is critical
Total harmonic distortion: 2nd ~ 31st

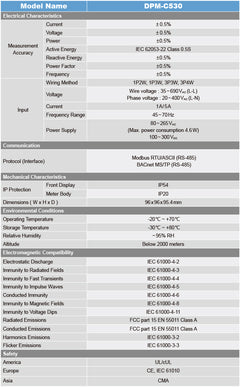

Especificaciones Técnicas

Alarm history: Sí

Demand tariff calculation: Sí

Display: Dot Matrix LCD

Environment operation temperature: -20~60°C

Harmonic distortion measurement: Total/Individual (to level 31)

Ip degree of protection: Front Display IP54/ Meter Body IP20

Measured current: 1 A / 5 A

Measured voltage: L-L: 35~690 VAC L-N: 20~400 VAC

Parameter grouping: Sí

Supply power: 80-265 VAC / 100-300 VDC
