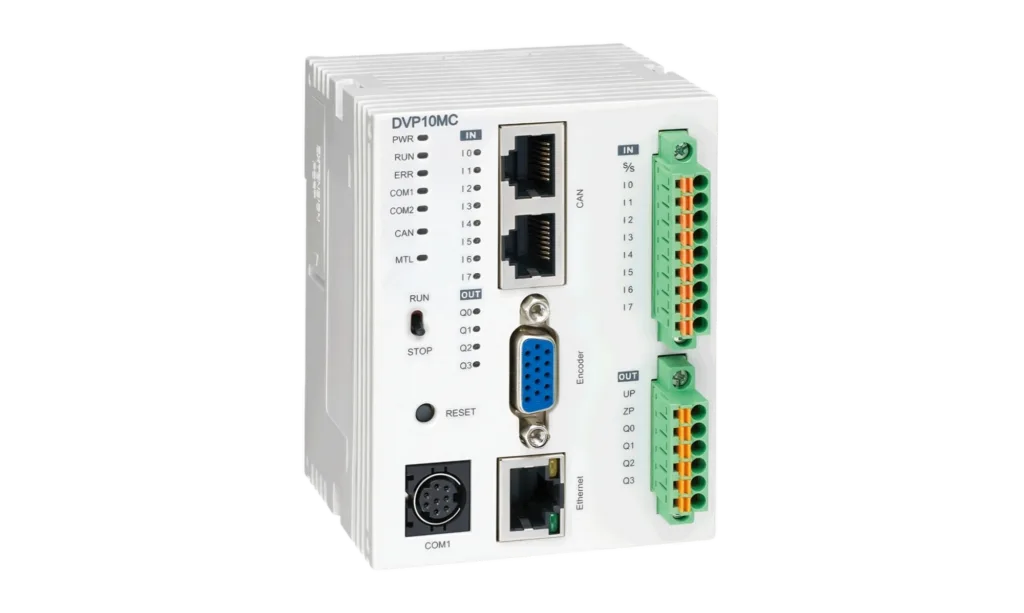

Delta DVP10MC11T PLC Controller
$ 1,452.30
Descripción
Industrial controller for automation sequences, signal integration, and communication with plant equipment. Its configuration of Program Capacity 16k(PLC)+ 1M bytes(MC)+ 12k(Fbs) Steps, Data Memory 45K (10k PLC+ 35k MC) Words, Integrated Communication Ports RS232*1 RS485*1, Integrated Digital Inputs 8, Integrated Outputs 4, High Speed Counter 1 Group Differential 1MHz allows for building compact and scalable systems for process and machinery control.
Stock: Agotado
Características
Especificaciones Técnicas
Canopen:
DS 402
Data memory:
45K (10K PLC + 35K MC) Words
Depth mm:
60.0
Environment operation humidity:
5-95%
Environment operation temperature:
32°F~131°F
Environment storage humidity:
5-95%
Height mm:
70.0
High speed counter:
1 Group Differential 1MHz
High speed pulse output:
4 Points
Integrated communication ports:
RS232*1 RS485*1
Integrated digital inputs:
8
Integrated ethernet modbus tcp ip:
true
Integrated outputs:
4
Left side high speed extension:
true
Max di:
240
Max do:
240
Motion e cam:
2048 Points*16
Motion g coded:
Max 6000 rows
Output type:
NMOS (Sink)
Power supply type:
DC24V
Program capacity:
16k (PLC) + 1M bytes (MC) + 12k (Fbs) Steps
Real time clock:
true
Width mm:
90.0
