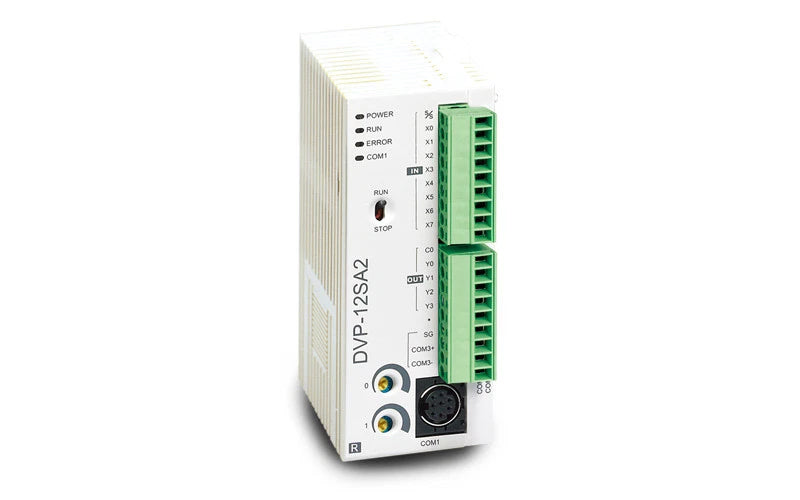

Delta DVP12SA211R PLC Controller

★★★★☆ 4.9 (56 reseñas)

SKU: DVP12SA211R PLC / Controller

$ 192.40

Descripción

Industrial controller for automation sequences, signal integration, and communication with plant equipment. Its configuration of Program Capacity 16k Steps, Data Memory 10K Words, Integrated Communication Ports RS232*1 RS485*1, Integrated Digital Inputs 8, Integrated Outputs 4, High-Speed Counter Software 8 points: 10kHz or 2 Channels: 5kHz 1 Channels: 15kHz Hardware 2 points: 100kHz 2 Channels: AB phase 50kHz x 1, 5KHz x1 allows for the construction of compact and scalable systems for process and machinery control.

Stock: Agotado

🚚 Envío gratis +$1000

🛡️ Garantía mínima de 12 meses

Contacta a un experto

Características

Program capacity 16k Steps for sequential control logic
Data memory 10K Words for registers, recipes, and process variables
Integrated digital inputs 8 for sensors and discrete signals
Integrated outputs 4 for actuators, relays, or commands
Communication ports RS232*1 RS485*1 for integration with HMI, VFD, or networks
Real-time clock: Yes for events and traceability
High-speed counter Software 8 points: 10kHz or 2 Channels: 5kHz 1 Channels: 15kHz Hardware 2 points : 100kHz 2 Channels: AB phase 50kHz x 1, 5KHz x1 for encoder or fast sensors
Program capacity: 16k Steps, key specification to validate technical compatibility
Power Supply Type: DC24V, key specification to validate technical compatibility
Height (mm): 37.4, key specification to validate technical compatibility

Especificaciones Técnicas

Data memory: 10K palabras

Depth mm: 60.0

Environment operation humidity: 5-95%

Environment operation temperature: 0°C~55°C

Environment storage humidity: 5~95%

File register: 5k Words V2.4 Above

Height mm: 37.4

High speed counter: Software 8 points: 10kHz or 2 Channels: 5kHz 1 Channel: 15kHz Hardware 2 points: 100kHz 2 Channels: AB phase 50kHz x 1, 5KHz x1

Integrated communication ports: RS232*1 RS485*1

Integrated digital inputs: 8

Integrated outputs: 4

Integrated volume scale: true

Left side high speed extension: true

Max di: 256

Max do: 256

Output type: Relay

Power supply type: DC24V

Program capacity: 16k pasos

Real time clock: true

Width mm: 90.0
