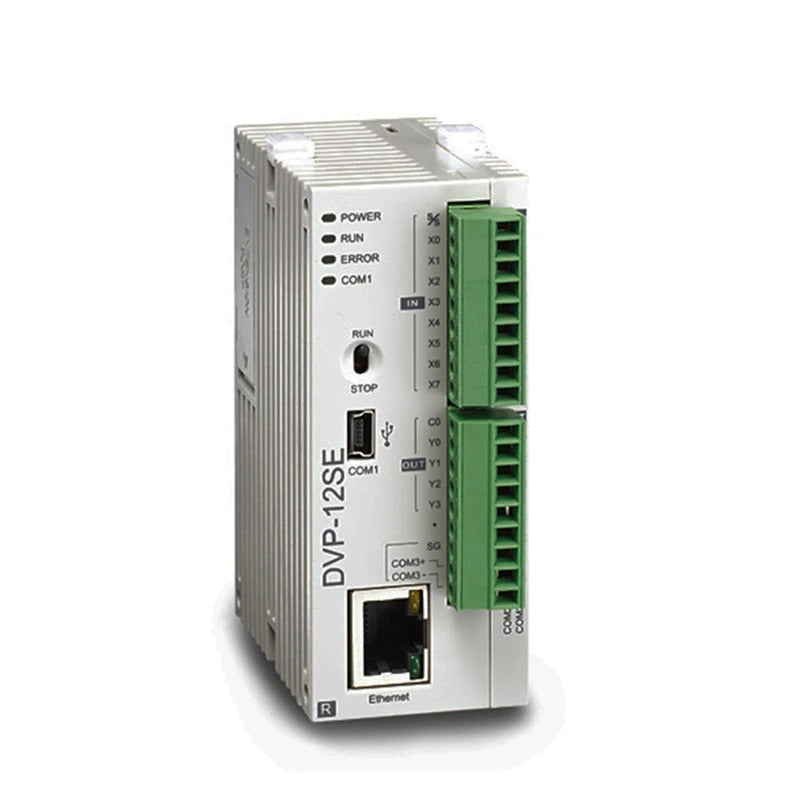

Delta DVP12SE11T PLC Controller
$ 411.90
Descripción
Industrial controller for automation sequences, signal integration, and communication with plant equipment. Its configuration of Program Capacity 16k Steps, Data Memory 12K Words, Integrated Communication Ports Mini USB Ethernet RS485*2, Integrated Digital Inputs 4, Integrated Outputs 4, High Speed Counter Software 8 points: 10kHz or 2 Channels: 5kHz Hardware 2 points: 100kHz 2 Channels: AB phase 50kHz x 1, 5kHz x 1 allows for the construction of compact and scalable systems for process and machinery control.
Stock: Agotado
Características
Especificaciones Técnicas
Data memory:
12,000 words
Depth mm:
60.0
Environment operation humidity:
5-95%
Environment operation temperature:
32°F~131°F
Environment storage humidity:
5-95%
Ethernet ip support:
Explicit Messaging
Height mm:
37.4
High speed counter:
Software 8 points: 10kHz or 2 Channels: 5kHz Hardware 2 points : 100kHz 2 Channels: AB phase 50kHz x 1, 5kHz x 1
High speed pulse output:
2 points 100kHz 2 points 10kHz
Integrated communication ports:
Mini USB Ethernet RS485*2
Integrated digital inputs:
4
Integrated ethernet modbus tcp ip:
true
Integrated outputs:
4
Left side high speed extension:
true
Max di:
256
Max do:
256
Output type:
NMOS (Sink)
Power supply type:
DC24V
Program capacity:
16k Steps
Real time clock:
true
Width mm:
90.0
