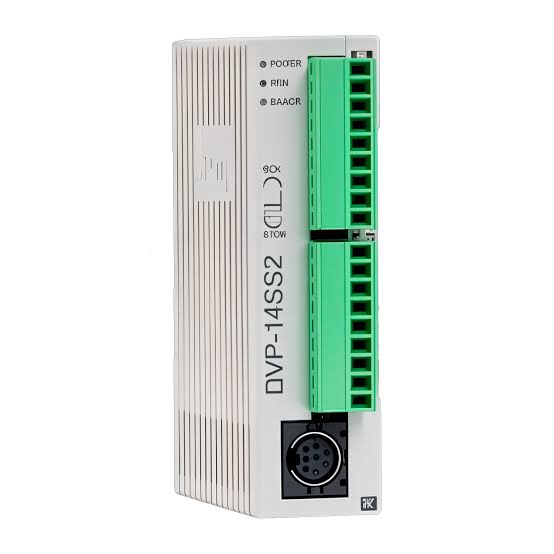

Delta DVP14SS211T PLC Controller
$ 156.70
Descripción
Industrial controller for automation sequences, signal integration, and communication with plant equipment. Its configuration of Program Capacity 8k Steps, Data Memory 5K Words, Integrated Communication Ports RS232*1 RS485*1, Integrated Digital Inputs 8, Integrated Outputs 6, High Speed Counter Software 8 points: 10kHz or 2 Channels: 5kHz Hardware 2 points: 20kHz 2 Channels: AB phase 10kHz allows for the construction of compact and scalable systems for process and machinery control.
Stock: Agotado
Características
Especificaciones Técnicas
Data memory:
5K Words
Depth mm:
60.0
Environment operation humidity:
5–95%
Environment operation temperature:
0°C~55°C
Environment storage humidity:
5-95%
Height mm:
25.2
High speed counter:
Software 8 points: 10kHz or 2 Channels: 5kHz Hardware 2 points: 20kHz 2 Channels: AB phase 10kHz
High speed pulse output:
4 point: 10kHz
Integrated communication ports:
RS232*1 RS485*1
Integrated digital inputs:
8
Integrated outputs:
6
Max di:
256
Max do:
256
Output type:
NMOS (Sink)
Power supply type:
DC24V
Program capacity:
8k Steps
Width mm:
90.0
