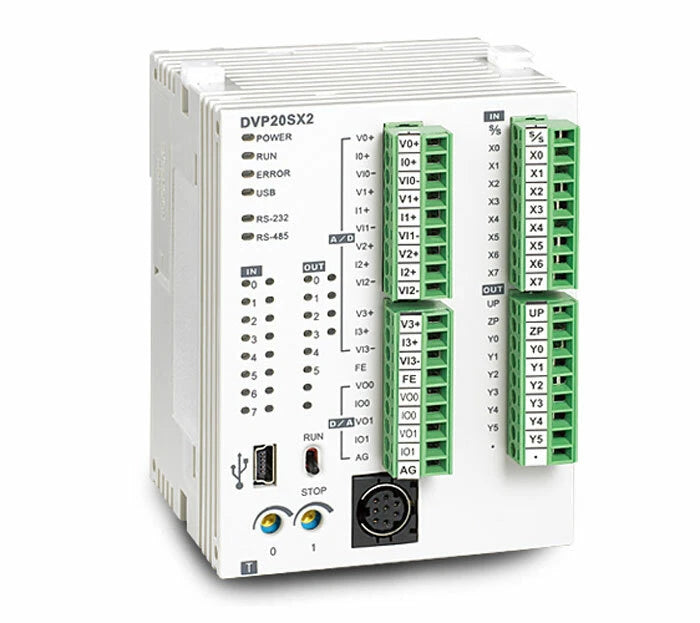

Delta DVP20SX211R PLC Controller
$ 325.50
Descripción
Industrial controller for automation sequences, signal integration, and communication with plant equipment. Its configuration of 16k Steps Program Capacity, 10K Words Data Memory, Integrated Communication Ports Mini USB RS232*1 RS485*1, 8 Integrated Digital Inputs, 6 Integrated Outputs, 4 points 12-bit Integrated Analog Input, 2 points 12-bit Integrated Analog Output, High-Speed Counter Software 8 points: 10kHz or 2 Channels: 5kHz Hardware 2 points: 20kHz 2 Channels: AB phase 10kHz allows for building compact and scalable systems for process and machinery control.
Stock: Agotado
Características
Especificaciones Técnicas
Data memory:
10K Words
Depth mm:
60.0
Environment operation humidity:
5~95%
Environment operation temperature:
0°C~55°C
Environment storage humidity:
5-95%
File register:
5k Words V2.4 Above
Height mm:
70.0
High speed counter:
Software 8 points: 10kHz or 2 Channels: 5kHz Hardware 2 points: 20kHz 2 Channels: AB phase 10kHz
Integrated analog input:
4 points 12-bit
Integrated analog output:
2 points 12Bit
Integrated communication ports:
Mini USB RS232*1 RS485*1
Integrated digital inputs:
8
Integrated outputs:
6
Integrated volume scale:
true
Left side high speed extension:
true
Max di:
256
Max do:
256
Output type:
Relay
Power supply type:
DC24V
Program capacity:
16k Steps
Real time clock:
true
Width mm:
90.0
