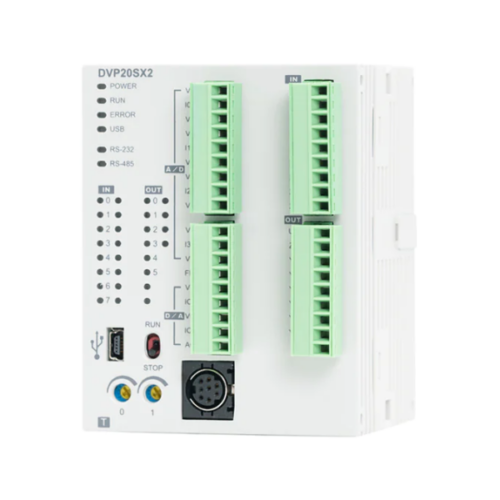

Delta DVP20SX211T PLC Controller
$ 326.80
Descripción
Industrial controller for automation sequences, signal integration, and communication with plant equipment. Its configuration of Program Capacity 16k Steps, Data Memory 10K Words, Integrated Communication Ports Mini USB RS232*1 RS485*1, Integrated Digital Inputs 8, Integrated Outputs 6, Integrated Analog Input 4 points 12bit, Integrated Analog Output 2 points 12Bit, High Speed Counter Software 8 points: 10kHz or 2 Channels: 5kHz Hardware 2 points: 20kHz 2 Channels: AB phase 10kHz allows for building compact and scalable systems for process and machinery control.
Stock: Agotado
Características
Especificaciones Técnicas
Data memory:
10K palabras
Depth mm:
60.0
Environment operation humidity:
5-95%
Environment operation temperature:
0°C~131°F
Environment storage humidity:
5-95%
File register:
5k Words V2.4 Above
Height mm:
70.0
High speed counter:
Software 8 points: 10kHz or 2 Channels: 5kHz Hardware 2 points: 20kHz 2 Channels: AB phase 10kHz
High speed pulse output:
2 points 100KHz 2 points 10KHz
Integrated analog input:
4 points 12bit
Integrated analog output:
2 points 12-bit
Integrated communication ports:
Mini USB RS232*1 RS485*1
Integrated digital inputs:
8
Integrated outputs:
6
Integrated volume scale:
true
Left side high speed extension:
true
Max di:
256
Max do:
256
Output type:
NMOS (Sink)
Power supply type:
DC24V
Program capacity:
16k Steps
Real time clock:
true
Width mm:
90.0
