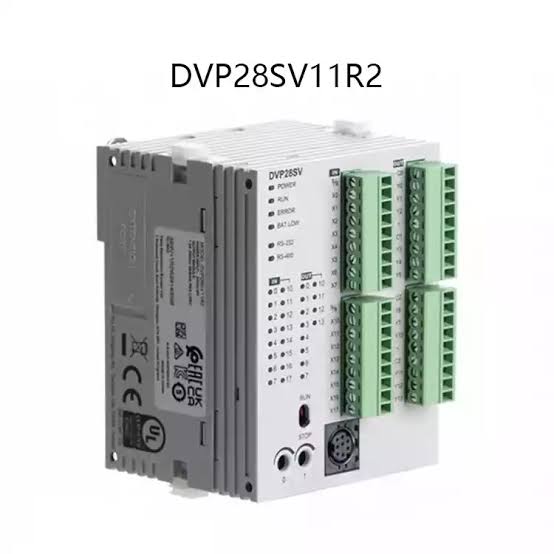

Delta PLC Controller DVP28SV11R2
$ 383.50
Descripción
Industrial controller for automation sequences, signal integration, and communication with plant equipment. Its configuration of Program Capacity 30k Steps, Data Memory 12K Words, Integrated Communication Ports RS232*1 RS485*1, Integrated Digital Inputs 16, Integrated Outputs 12, High Speed Counter 8 points: 10kHz Hardware 4 Channels: AB phase 200kHz x 2, 20kHz x 2 allows for building compact and scalable systems for process and machinery control.
Stock: Agotado
Características
Especificaciones Técnicas
Data memory:
12K Words
Depth mm:
60.0
Environment operation humidity:
5–95%
Environment operation temperature:
32°F~131°F
Environment storage humidity:
5-95%
File register:
50K Words
Height mm:
70.0
High speed counter:
8 points: 10kHz Hardware 4 Channels: AB phase 200kHz x 2, 20kHz x 2
Integrated communication ports:
RS232*1 RS485*1
Integrated digital inputs:
16
Integrated outputs:
12
Integrated volume scale:
true
Left side high speed extension:
true
Max di:
256
Max do:
256
Output type:
Relay
Power supply type:
24V DC
Program capacity:
30k Steps
Real time clock:
true
Width mm:
90.0
