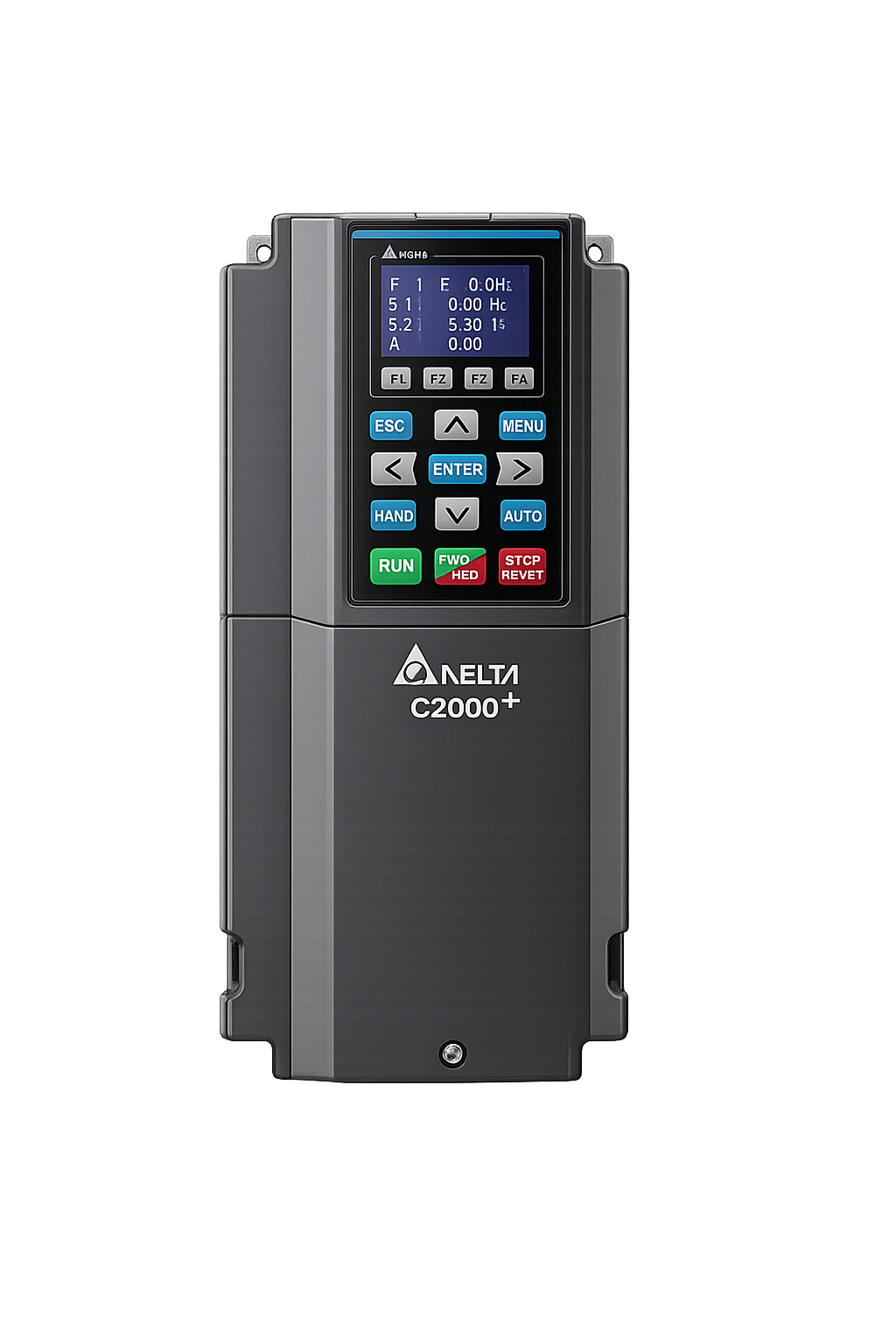

Delta 1HP 380-480V Three-Phase Variable Frequency Drive VFD007C4EA-21 | C2000+ Series

★★★★☆ 4.9 (56 reseñas)

SKU: VFD007C4EA-21 Variable Frequency Drive (VFD)

$ 579.30

Descripción

Designed for industrial automation requiring precise motor control, stable response, and reliable operation in continuous processes. Integrates 1 HP output power, 0.75 power, 380-480 input, 3 output current, Constant Torque Type, CANopen communication, 11/5 Digital I/O, 3/2 Analog I/O to facilitate commissioning, monitoring, and connection with control systems.

Stock: Agotado

🚚 Envío gratis +$1000

🛡️ Garantía mínima de 12 meses

Contacta a un experto

Características

1 HP output power for sizing industrial motors with controlled load
0.75 kW rated capacity suitable for pumping, ventilation, or machinery applications
380-480 V input power for integration into low-voltage industrial networks
3-phase input for stable operation in three-phase installations
0-480 V variable output for adjusting motor speed and torque
3 A output current for proper protection and wiring selection
Constant torque control to maintain consistent performance under load
Internal braking transistor to support controlled decelerations
10,000 Steps program capacity for internal logic and operation sequences
11/5 digital inputs and outputs for machine commands, signals, and permissions

Especificaciones Técnicas

Analog i o: 3/2

Brake transistor: Intern

Communication ports: CANopen

Digital i o: 11/5

Input phase: 3

Input voltage: 380-480

Mounting: Soporte de pared

Output current a: 3.0

Output hp: 1.0

Output kw: 0.75

Output phase: 3
