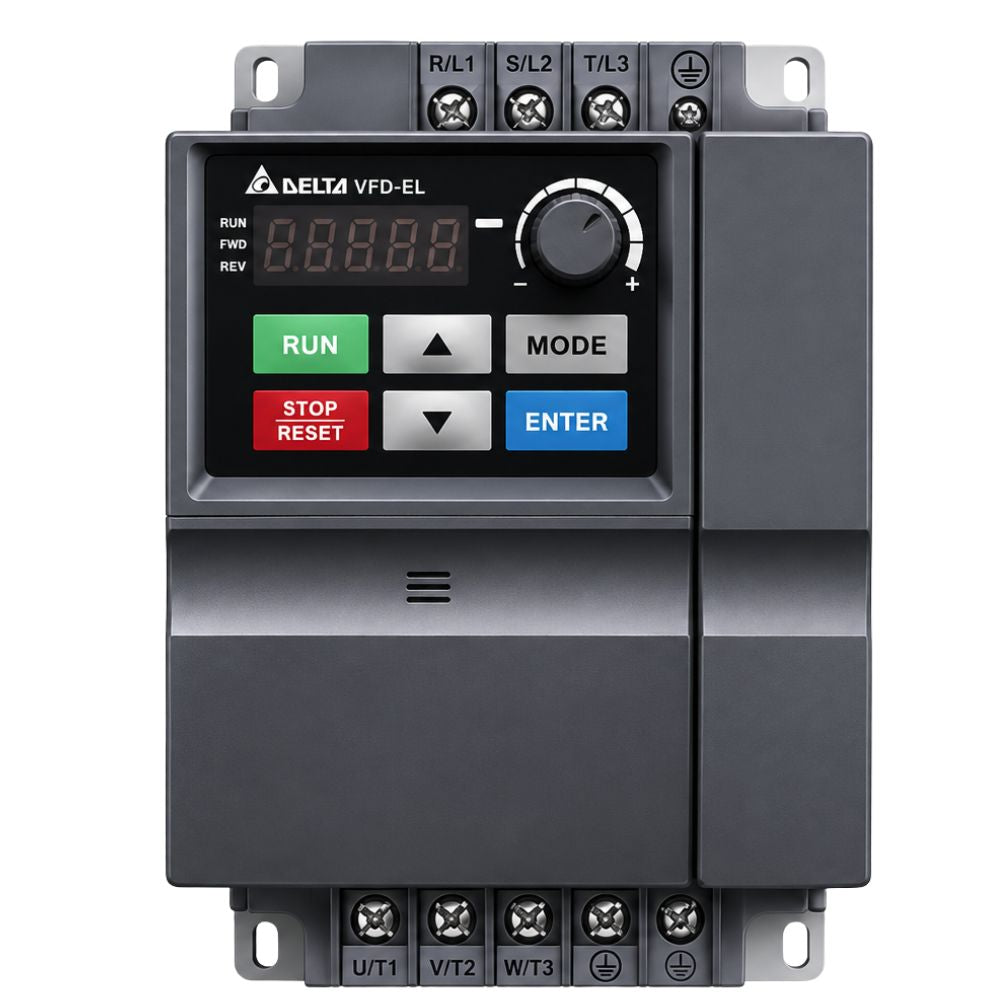

Delta VFD 2HP 200-240V Single Phase VFD015EL21W-1

Delta VFD 2HP 200-240V Single Phase VFD015EL21W-1

★★★★☆ 4.9 (56 reseñas)
SKU: VFD015EL21W-1 Variable Frequency Drive (VFD)
$ 220.00

Descripción

Designed for industrial automation that requires precise motor control, stable response, and reliable operation in continuous processes. Integrates 2 HP output power, 1.5 power, 200-240 input, 7.5 output current, Constant Torque Type, Modbus Ascii and RTU communication, Digital I/O 4/1, Analog I/O 1/1 to facilitate commissioning, monitoring, and connection with control systems.

Stock: Agotado
🚚 Envío gratis +$1000
🛡️ Garantía mínima de 12 meses
WhatsApp Contacta a un experto
Características
  • 2 HP output power for sizing industrial motors with controlled load
  • 1.5 kW rated capacity suitable for pumping, ventilation or machinery applications
  • 200-240 V input power for integration into low-voltage industrial networks
  • 1-phase input for stable operation in three-phase installations
  • 0-230 V variable output for adjusting motor speed and torque
  • 7.5 A output current for proper selection of protections and wiring
  • Constant torque control to maintain consistent performance under load
  • External braking transistor to support controlled decelerations
  • 4/1 digital inputs and outputs for commands, signals and machine permits
  • 1/1 analog inputs and outputs for speed references and process signals
Especificaciones Técnicas
Analog i o: 1/1
Brake transistor: External
Closed loop control: NO
Communication ports: Modbus ASCII and RTU
Digital i o: 4/1
Frame: B
Input phase: 1
Input voltage: 200-240
Mounting: Screw or DIN rail
Output current a: 7.5
Output hp: 2.0
Output kw: 1.5
Output phase: 3
Output voltage: 0-230
Plc program capacity: 0 Steps
Programming connection: RJ45 twisted pair
Sensorless control: SÍ
Torque type: Constant
V f control: SÍ
