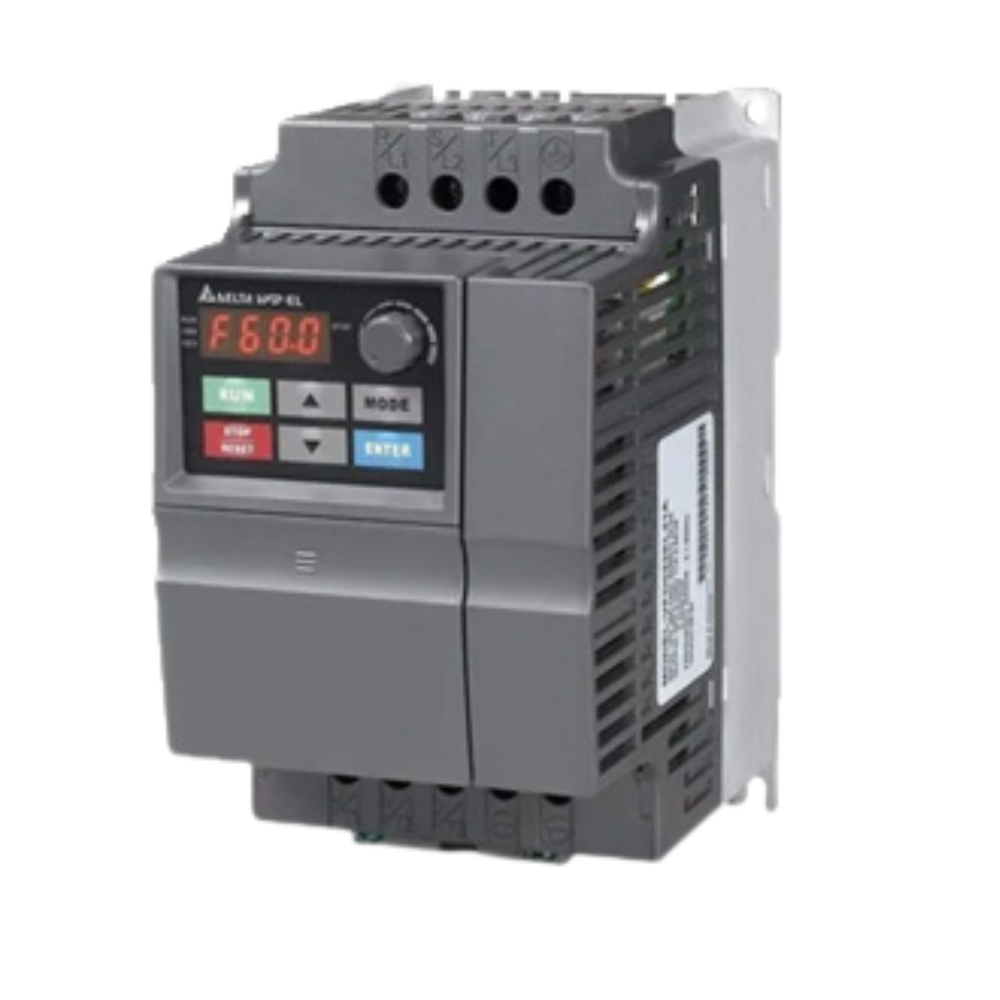

Delta VFD 5.5HP 380-480V Three-Phase VFD040EL43W-1

Delta VFD 5.5HP 380-480V Three-Phase VFD040EL43W-1

★★★★☆ 4.9 (56 reseñas)
SKU: VFD040EL43W-1 Variable Frequency Drive (VFD)
$ 354.90

Descripción

Designed for industrial automation that requires precise motor control, stable response, and reliable operation in continuous processes. Integrates 5.5 HP output power, 4 power, 380-480 input, 9 output current, Constant Torque Type, Modbus Ascii and RTU communication, Digital I/O 4/1, Analog I/O 1/1 to facilitate commissioning, monitoring and connection with control systems.

Stock: Agotado
🚚 Envío gratis +$1000
🛡️ Garantía mínima de 12 meses
WhatsApp Contacta a un experto
Características
  • 5.5 HP output power for sizing industrial motors with controlled load
  • 4 kW rated capacity suitable for pumping, ventilation or machinery applications
  • 380-480 V input power for integration into low-voltage industrial networks
  • 3-phase input for stable operation in three-phase installations
  • 0-480 V variable output for adjusting motor speed and torque
  • 9 A output current for proper selection of protections and wiring
  • Constant torque control for maintaining consistent performance under load
  • External braking transistor to support controlled decelerations
  • 4/1 digital inputs and outputs for commands, signals and machine permits
  • 1/1 analog inputs and outputs for speed references and process signals
Especificaciones Técnicas
Analog i o: 1/1
Brake transistor: External
Closed loop control: NO
Communication ports: Modbus ASCII and RTU
Digital i o: 4/1
Frame: B
Input phase: 3
Input voltage: 380-480
Mounting: Screw or DIN rail
Output current a: 9.0
Output hp: 5.5
Output kw: 4.0
Output phase: 3
Output voltage: 0-480
Plc program capacity: 0 Steps
Programming connection: RJ45 twisted pair
Sensorless control: SÍ
Torque type: Constant
V f control: SÍ
