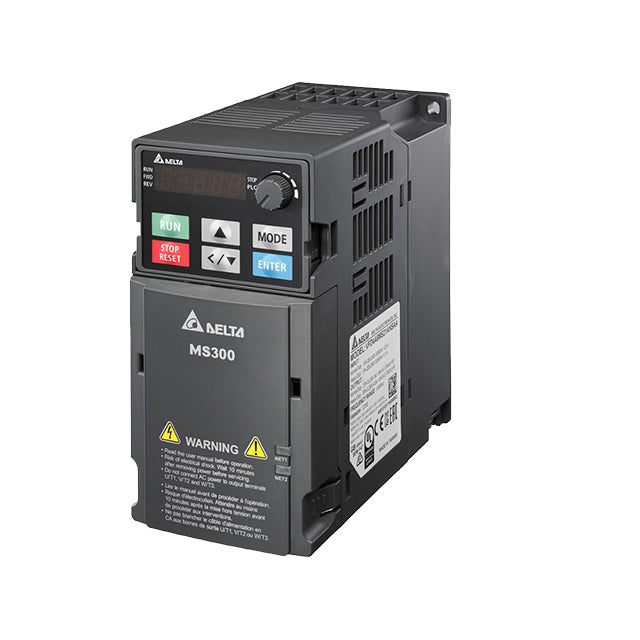

Delta 0.5HP 200-240V Single-Phase VFD2A8MS21MFSAA Variable Frequency Drive

Delta 0.5HP 200-240V Single-Phase VFD2A8MS21MFSAA Variable Frequency Drive

★★★★☆ 4.9 (56 reseñas)
SKU: VFD2A8MS21MFSAA Variable Frequency Drive (VFD)
$ 555.70

Descripción

Designed for industrial automation requiring precise motor control, stable response, and reliable operation in continuous processes. Integrates 0.5 HP output power, 0.4 power, 200-240 input, 2.8 output current, Constant Torque Type, Modbus Ascii and RTU communication, Digital I/O 7/4, Analog I/O 2/1 to facilitate commissioning, monitoring, and connection with control systems.

Stock: Agotado
🚚 Envío gratis +$1000
🛡️ Garantía mínima de 12 meses
WhatsApp Contacta a un experto
Características
  • Output power of 0.5 HP for sizing industrial motors with controlled load
  • Rated capacity of 0.4 kW suitable for pumping, ventilation, or machinery applications
  • 200-240 V input power for integration into low-voltage industrial networks
  • 1-phase input for stable operation in three-phase installations
  • Variable output 0-230 V for adjusting motor speed and torque
  • Output current of 2.8 A for correct selection of protections and wiring
  • Constant torque control for maintaining consistent performance under load
  • Internal braking transistor to support controlled decelerations
  • 7/4 digital inputs and outputs for commands, signals, and machine interlocks
  • 2/1 analog inputs and outputs for speed references and process signals
Especificaciones Técnicas
Analog i o: 2/1
Brake transistor: Internal
Closed loop control: NO
Communication ports: Modbus ASCII and RTU
Digital i o: 7/4
Frame size: A1
Input phase: 1
Input voltage: 200-240
Mounting: Tornillería o Kit Pletina de Toma de Tierra
Output current a: 2.8
Output hp: 0.5
Output kw: 0.4
Output phase: 3
Output voltage: 0-230
Plc language: Escalera
Plc program capacity: 2000 Steps
Programming connection: RJ45 twisted pair
Protection level: IP66 / NEMA4X
Sensorless control: SÍ
Torque type: Constant
V f control: SÍ
