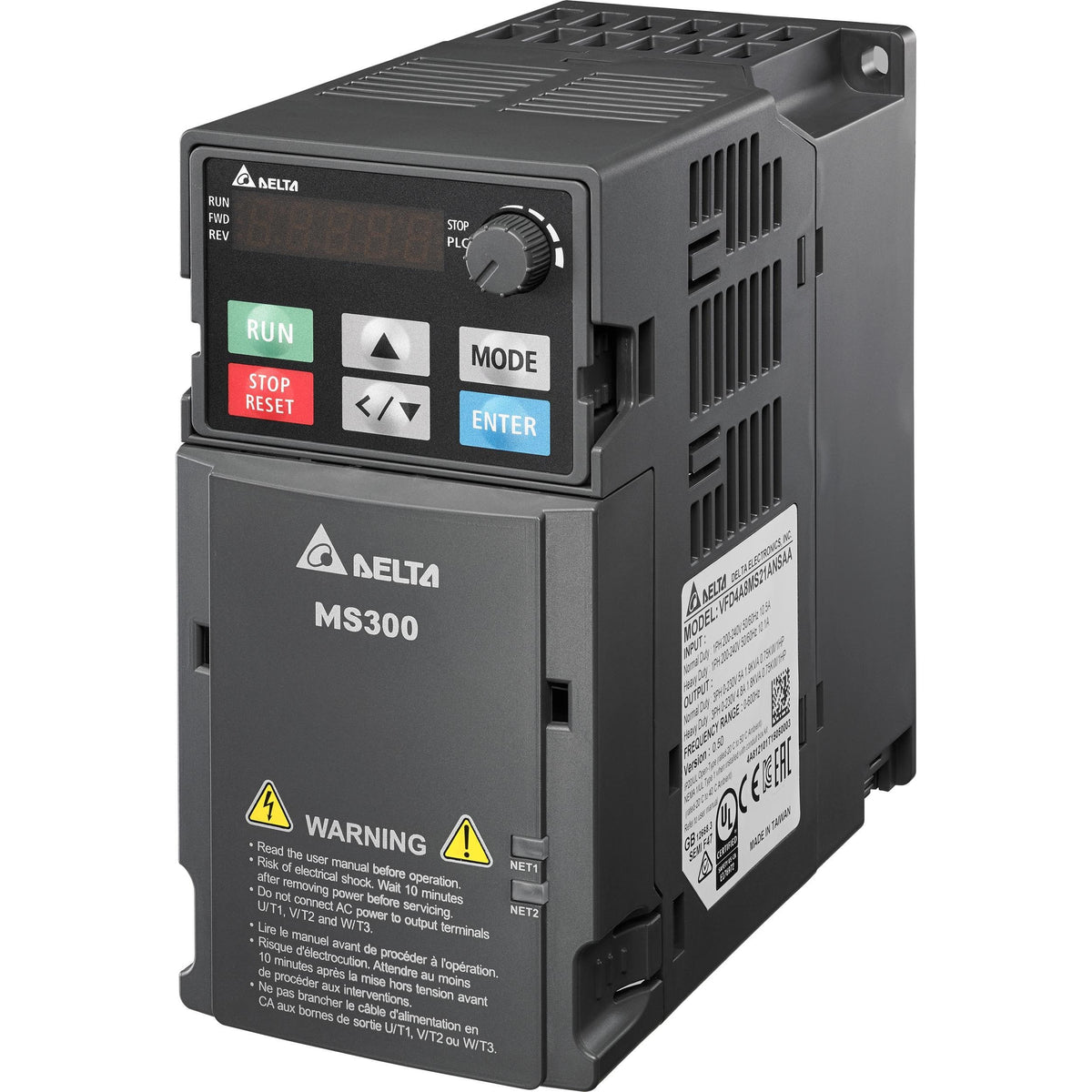

Delta VFD 0.5HP 200-240V Three-Phase VFD2A8MS23ANSAA

Delta VFD 0.5HP 200-240V Three-Phase VFD2A8MS23ANSAA

★★★★☆ 4.9 (56 reseñas)
SKU: VFD2A8MS23ANSAA Variable Frequency Drive (VFD)
$ 281.00

Descripción

Designed for industrial automation that requires precise motor control, stable response, and reliable operation in continuous processes. Integrates 0.5 HP output power, 0.4 power, 200-240 input, 2.8 output current, Constant Torque Type, Modbus Ascii and RTU communication, Digital I/O 7/4, Analog I/O 2/1 to facilitate commissioning, monitoring, and connection with control systems.

Stock: Agotado
🚚 Envío gratis +$1000
🛡️ Garantía mínima de 12 meses
WhatsApp Contacta a un experto
Características
  • 0.5 HP output power for sizing industrial motors with controlled load
  • 0.4 kW rated capacity suitable for pumping, ventilation, or machinery applications
  • 200-240 V input supply for integration into low-voltage industrial networks
  • 3-phase input for stable operation in three-phase installations
  • 0-230 V variable output for adjusting motor speed and torque
  • 2.8 A output current for proper selection of protections and wiring
  • Constant torque control to maintain consistent performance under load
  • Internal braking transistor to support controlled decelerations
  • 7/4 digital inputs and outputs for commands, signals, and machine interlocks
  • 2/1 analog inputs and outputs for speed references and process signals
Especificaciones Técnicas
Analog i o: February 1
Brake transistor: Internal
Closed loop control: NO
Communication ports: Modbus ASCII and RTU
Digital i o: 7/4
Frame size: A2
Input phase: 3
Input voltage: 200-240
Mounting: Screw or DIN rail
Output current a: 2.8
Output hp: 0.5
Output kw: 0.4
Output phase: 3
Output voltage: 0-230
Plc language: Ladder
Plc program capacity: 2000 Steps
Programming connection: RJ45 twisted pair
Protection level: IP20 / UL Open Type
Sensorless control: SÍ
Torque type: Constant
V f control: SÍ
