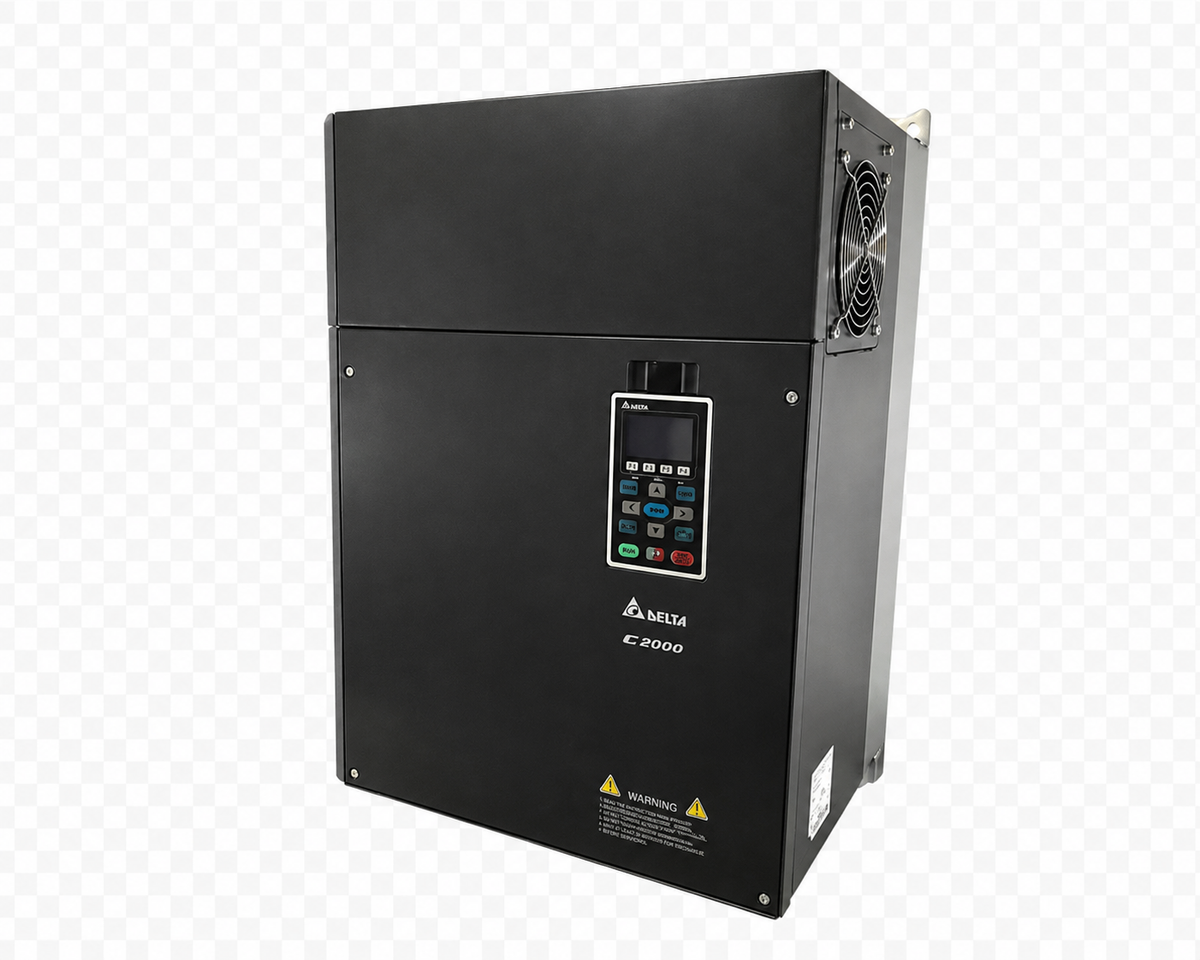

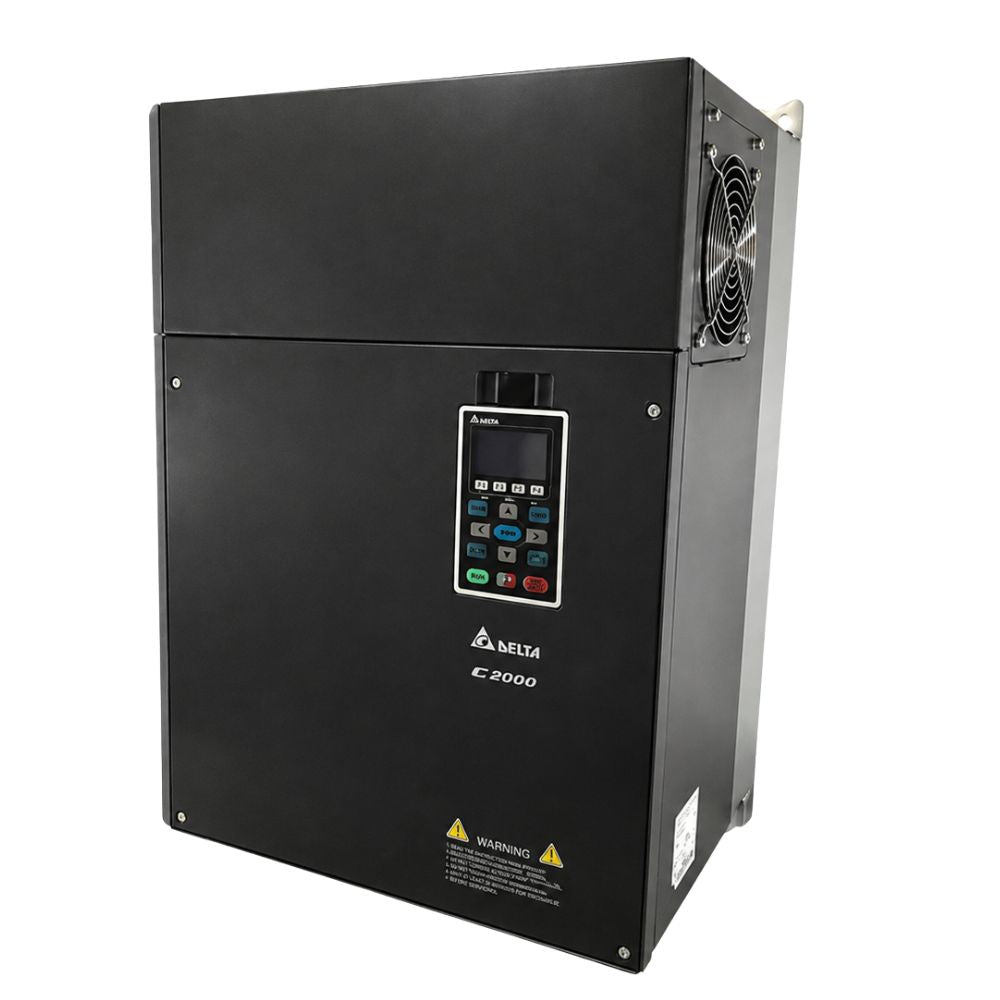

Delta 60HP 200-240V Three-Phase VFD VFD450C23A-21 | C2000+ Series

★★★★☆ 4.9 (56 reseñas)

SKU: VFD450C23A-21 Variable Frequency Drive (VFD)

$ 4,861.00

Descripción

Designed for industrial automation requiring precise motor control, stable response, and reliable operation in continuous processes. It integrates 60 HP output power, 45 power, 200-240 input, 180 output current, Constant Torque Type, CANopen communication, 11/5 Digital I/O, 3/2 Analog I/O for easy commissioning, monitoring, and connection with control systems.

Stock: Agotado

🚚 Envío gratis +$1000

🛡️ Garantía mínima de 12 meses

Contacta a un experto

Características

60 HP output power for sizing industrial motors with controlled load
45 kW rated capacity suitable for pumping, ventilation, or machinery applications
200-240 V input supply for integration into low-voltage industrial networks
3-phase input for stable operation in three-phase installations
0-230 V variable output for adjusting motor speed and torque
180 A output current for proper protection and wiring selection
Constant torque control to maintain consistent performance under load
External braking transistor to support controlled decelerations
10,000 Steps program capacity for internal logic and operating sequences
11/5 digital inputs and outputs for commands, signals, and machine interlocks

Especificaciones Técnicas

Analog i o: 3/2

Brake transistor: External

Communication ports: CANopen

Digital i o: 11/5

Input phase: 3

Input voltage: 200-240

Mounting: Soporte de pared

Output current a: 180.0

Output hp: 60.0

Output kw: 45.0

Output phase: 3
