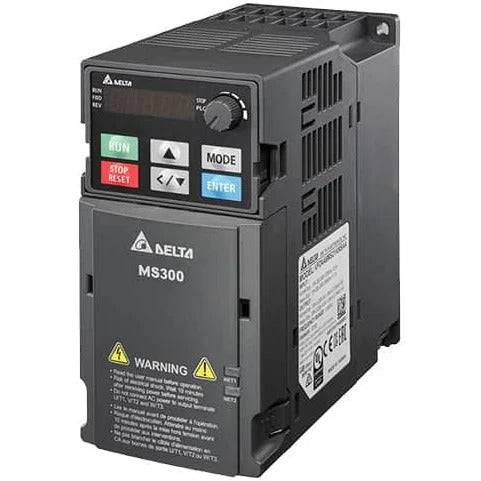

Delta 1HP 200-240V Single-Phase VFD VFD4A8MS21ANSAA

Delta 1HP 200-240V Single-Phase VFD VFD4A8MS21ANSAA

★★★★☆ 4.9 (56 reseñas)
SKU: VFD4A8MS21ANSAA Variable Frequency Drive (VFD)
$ 303.00

Descripción

Designed for industrial automation requiring precise motor control, stable response, and reliable operation in continuous processes. It integrates 1 HP output power, 0.75 power, 200-240 input, 4.8 output current, Constant Torque Type, Modbus Ascii and RTU communication, 7/4 Digital I/O, 2/1 Analog I/O to facilitate commissioning, monitoring, and connection with control systems.

Stock: Agotado
🚚 Envío gratis +$1000
🛡️ Garantía mínima de 12 meses
WhatsApp Contacta a un experto
Características
  • 1 HP output power for sizing industrial motors with controlled load
  • 0.75 kW rated capacity suitable for pumping, ventilation or machinery applications
  • 200-240 V input power for integration into low voltage industrial networks
  • 1-phase input for stable operation in three-phase installations
  • 0-230 V variable output for adjusting motor speed and torque
  • 4.8 A output current for proper selection of protections and wiring
  • Constant torque control for consistent performance under load
  • Internal braking transistor to support controlled decelerations
  • 7/4 digital inputs and outputs for commands, signals and machine interlocks
  • 2/1 analog inputs and outputs for speed references and process signals
Especificaciones Técnicas
Analog i o: 2/1
Brake transistor: Internal
Closed loop control: NO
Communication ports: Modbus ASCII and RTU
Digital i o: July 4th
Frame size: B2
Input phase: 1
Input voltage: 200-240
Mounting: Screw or DIN rail
Output current a: 4.8
Output hp: 1.0
Output kw: 0.75
Output phase: 3
Output voltage: 0-230
Plc language: Ladder
Plc program capacity: 2000 Steps
Programming connection: RJ45 twisted pair
Protection level: IP20 / UL Open Type
Sensorless control: SÍ
Torque type: Constant
V f control: SÍ
