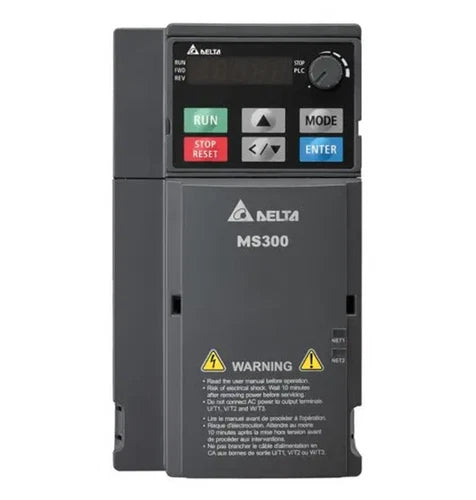

Delta Variable Frequency Drive 3HP 380-480V Three-Phase VFD5A5MS43ANSAA

Delta Variable Frequency Drive 3HP 380-480V Three-Phase VFD5A5MS43ANSAA

★★★★☆ 4.9 (56 reseñas)
SKU: VFD5A5MS43ANSAA Variable Frequency Drive (VFD)
$ 390.90

Descripción

Designed for industrial automation that requires precise motor control, stable response, and reliable operation in continuous processes. Integrates 3 HP output power, 2.2 power, 380-480 input, 5.5 output current, Constant Torque Type, Modbus Ascii and RTU communication, Digital I/O 7/4, Analog I/O 2/1 to facilitate commissioning, monitoring, and connection with control systems.

Stock: Agotado
🚚 Envío gratis +$1000
🛡️ Garantía mínima de 12 meses
WhatsApp Contacta a un experto
Características
  • 3 HP output power for sizing industrial motors with controlled load
  • 2.2 kW rated capacity suitable for pumping, ventilation, or machinery applications
  • 380-480 V input power for integration into low-voltage industrial networks
  • 3-phase input for stable operation in three-phase installations
  • 0-480 V variable output for adjusting motor speed and torque
  • 5.5 A output current for correctly selecting protections and wiring
  • Constant torque control to maintain consistent performance under load
  • Internal braking transistor to support controlled decelerations
  • 7/4 digital inputs and outputs for commands, signals, and machine permits
  • 2/1 analog inputs and outputs for speed references and process signals
Especificaciones Técnicas
Analog i o: 2/1
Brake transistor: Internal
Closed loop control: NO
Communication ports: Modbus ASCII and RTU
Digital i o: 7/4
Frame size: C1
Input phase: 3
Input voltage: 380-480
Mounting: Screw or DIN rail
Output current a: 5.5
Output hp: 3.0
Output kw: 2.2
Output phase: 3
Output voltage: 0-480
Plc language: Ladder
Plc program capacity: 2000 Steps
Programming connection: RJ45 twisted pair
Protection level: IP20 / UL Open Type
Sensorless control: SÍ
Torque type: Constant
V f control: SÍ
