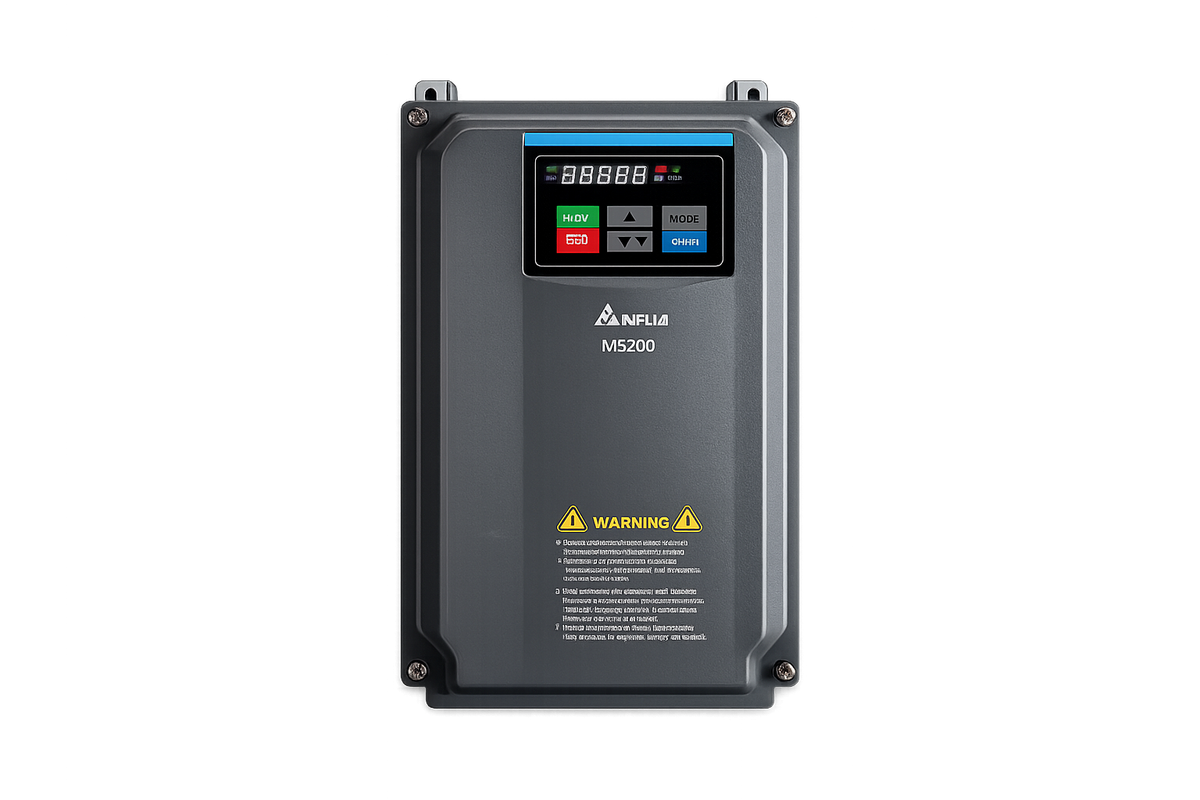

Delta Variable Frequency Drive 2HP 200-240V Three-Phase VFD7A5MS23MNSAA

Delta Variable Frequency Drive 2HP 200-240V Three-Phase VFD7A5MS23MNSAA

★★★★☆ 4.9 (56 reseñas)
SKU: VFD7A5MS23MNSAA Variable Frequency Drive (VFD)
$ 561.90

Descripción

Designed for industrial automation requiring precise motor control, stable response, and reliable operation in continuous processes. It integrates 2 HP output power, 1.5 power, 200-240 input, 7.5 output current, Constant Torque Type, Modbus Ascii and RTU communication, Digital I/O 7/4, Analog I/O 2/1 to facilitate commissioning, monitoring, and connection with control systems.

Stock: Agotado
🚚 Envío gratis +$1000
🛡️ Garantía mínima de 12 meses
WhatsApp Contacta a un experto
Características
  • 2 HP output power for sizing industrial motors with controlled load
  • 1.5 kW rated capacity suitable for pumping, ventilation, or machinery applications
  • 200-240 V input power for integration into low-voltage industrial networks
  • 3-phase input for stable operation in three-phase installations
  • 0-230 V variable output for adjusting motor speed and torque
  • 7.5 A output current for proper selection of protections and wiring
  • Constant torque control to maintain consistent performance under load
  • Internal braking transistor to support controlled decelerations
  • 7/4 digital inputs and outputs for commands, signals, and machine permissions
  • 2/1 analog inputs and outputs for speed references and process signals
Especificaciones Técnicas
Analog i o: 2/1
Brake transistor: Internal
Closed loop control: NO
Communication ports: Modbus ASCII and RTU
Digital i o: 4/7
Frame size: A2
Input phase: 3
Input voltage: 200-240
Mounting: Tornillos o Kit de Placa de Tierra
Output current a: 7.5
Output hp: 2.0
Output kw: 1.5
Output phase: 3
Output voltage: 0-230
Plc language: Escalera
Plc program capacity: 2000 Steps
Programming connection: RJ45 twisted pair
Protection level: IP66 / NEMA4X
Sensorless control: SÍ
Torque type: Constant
V f control: SÍ
