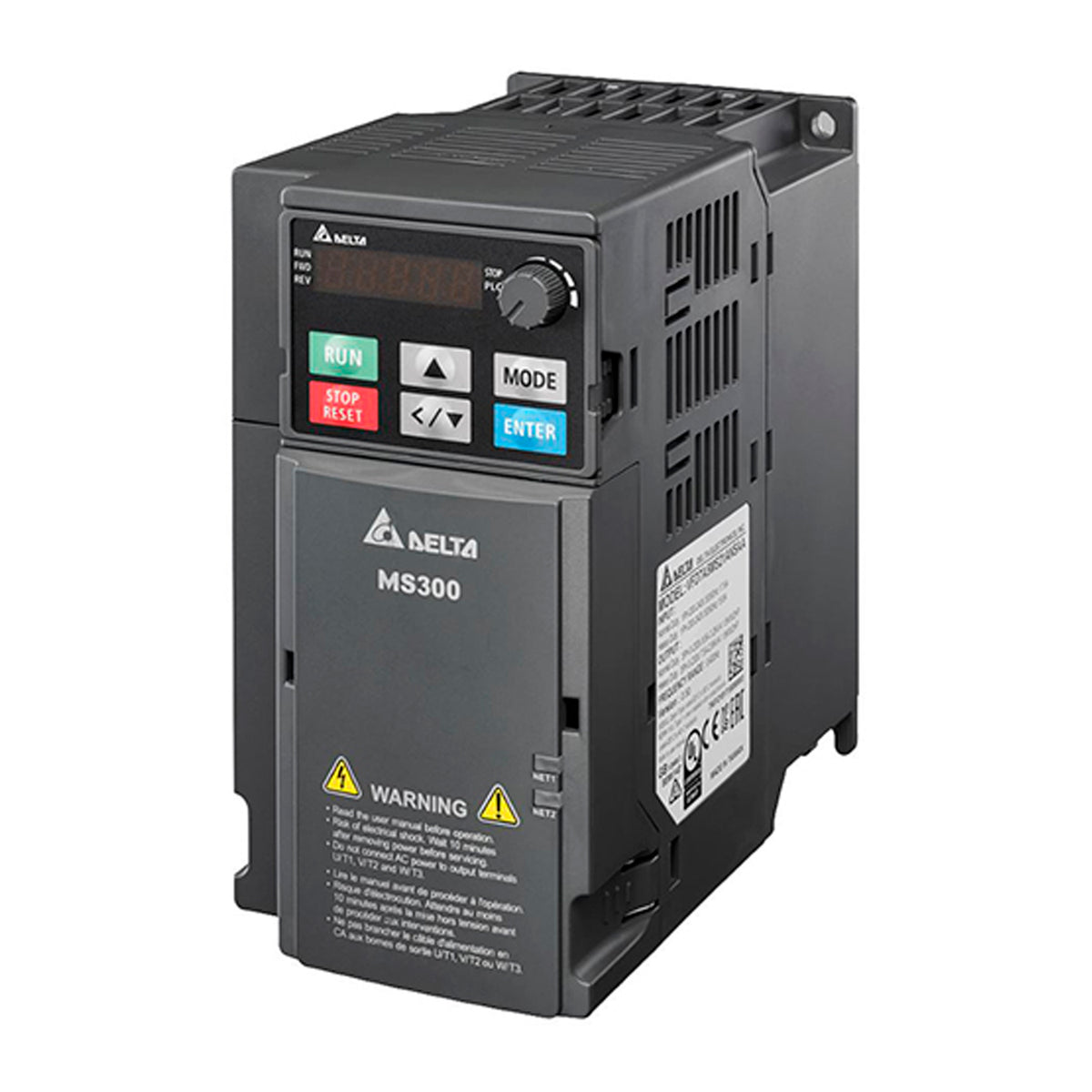

Delta 5HP 380-480V Three-Phase VFD9A0MS43ANSAA Variable Frequency Drive

Delta 5HP 380-480V Three-Phase VFD9A0MS43ANSAA Variable Frequency Drive

★★★★☆ 4.9 (56 reseñas)
SKU: VFD9A0MS43ANSAA Variable Frequency Drive (VFD)
$ 474.00

Descripción

Designed for industrial automation requiring precise motor control, stable response, and reliable operation in continuous processes. It integrates 5 HP output power, 3.7 kW power, 380-480 V input, 9 A output current, Constant Torque Type, Modbus Ascii and RTU communication, 7/4 Digital I/O, 2/1 Analog I/O to facilitate commissioning, monitoring, and connection with control systems.

Stock: Agotado
🚚 Envío gratis +$1000
🛡️ Garantía mínima de 12 meses
WhatsApp Contacta a un experto
Características
  • 5 HP output power for sizing industrial motors with controlled load
  • 3.7 kW rated capacity suitable for pumping, ventilation, or machinery applications
  • 380-480 V input power for integration into low-voltage industrial networks
  • 3-phase input for stable operation in three-phase installations
  • 0-480 V variable output for adjusting motor speed and torque
  • 9 A output current for selecting protections and wiring correctly
  • Constant torque control to maintain consistent performance under load
  • Internal braking transistor to support controlled decelerations
  • 7/4 digital inputs and outputs for commands, signals, and machine interlocks
  • 2/1 analog inputs and outputs for speed references and process signals
Especificaciones Técnicas
Analog i o: 2/1
Brake transistor: Internal
Closed loop control: NO
Communication ports: Modbus ASCII and RTU
Digital i o: July 4th
Frame size: C1
Input phase: 3
Input voltage: 380-480
Mounting: Screw or Dinrail
Output current a: 9.0
Output hp: 5.0
Output kw: 3.7
Output phase: 3
Output voltage: 0-480
Plc language: Escalera
Plc program capacity: 2000 steps
Programming connection: RJ45 twisted pair
Protection level: IP20 / UL Open Type
Sensorless control: SÍ
Torque type: Constant
V f control: SÍ
