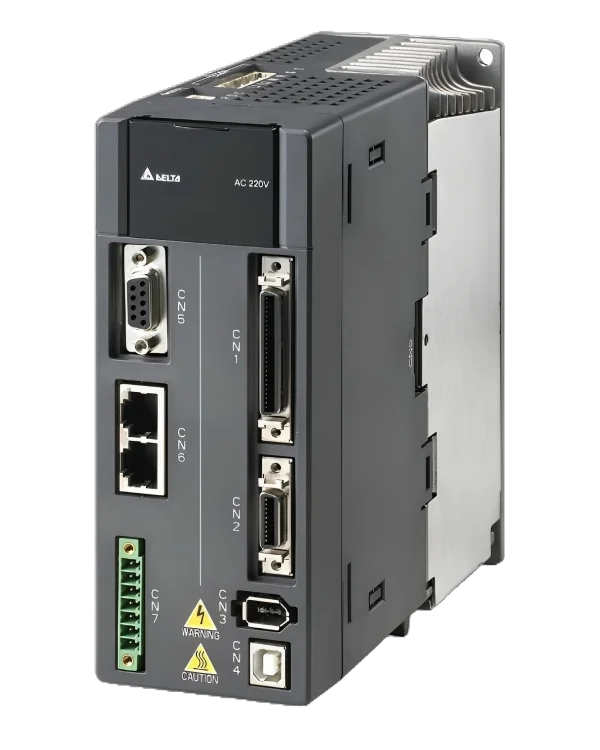

Variador de Frecuencia Delta ASD-A2-1021-E
$ 858.10
Descripción
Diseñado para automatización industrial que requiere control preciso de motor, respuesta estable y operación confiable en procesos continuos. Integra para facilitar la puesta en marcha, el monitoreo y la conexión con sistemas de control.
Stock: Agotado
🚚 Envío gratis +$200
🛡️ Garantía 2 años
↩️ Devolución 30 días
Características
Especificaciones Técnicas
Built in motion profiles:
true
Communication interface:
USB/EthetCat
Continuous output current arms:
7.3
Cooling system:
Fan Cooling
Dynamic brake:
Built-in
Encoder resolution feedback resolution:
20-bit (1280000 p/rev)
Frequency response characteristic:
Maximum 1kHz
Input voltage phase:
220VAC 1-phase/3-phase
Ip rating:
IP20
Model type:
Ethercat
Position command torque limit:
Set by Parameter
Programmable digital input output:
13 inputs/4 outputs
Protection functions:
STO, Overcurrent, Overvoltage, Undervoltage, Regeneration error, Overload, Overspeed, Abnormal Pulse control, Excessive deviation, Excessive Deviation Full close loop, Watch dog execution time out, Encoder error, Adjustment error, E-Stop, Limit switch error, Serial Com error, Input Power Phase lost, Command write-in error, Terminal with short circuit protection (UVW, CN1, CN2, CN3 terminals)
Pulse output:
Encoder Signal Output (ABZ line driver, Z open collector) Pulse Output is scalable by Parameter
Rated output power kw:
1.0
Speed control range:
1:5000
Tuning modes:
Auto / Manual
Weight kg lbs:
2.0(4.4)
